CV5060

Sensibly equivalent to:
CV5325 Z759S Z759

Extras ▼



The CV5060 is an RF pentode, that dates from 1955, with a high mutual conductance and was designed for video or other wideband RF amplification. The prototype and commercial equivalent is the Z759.

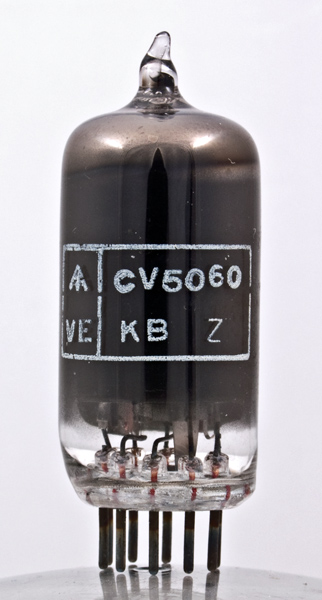

The KB/Z identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the Z identifies the maker as MO Valve Company, Hammersmith.

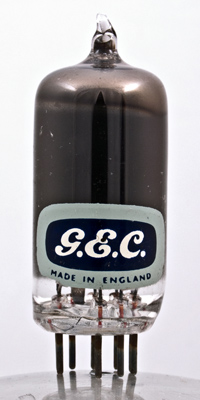

The envelope is opaque all round. The GEC logo denotes a professional device.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 48 mm tall.
Reference: Data-sheet. Type CV5060 was first introduced in 1956. See also 1956 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k
g1
k
nc
h
h
a
g2
g3,s



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
6.3
0.6
250
250
-2
20.0
5.5
0.5M
15.0
5W
