ECF82

Sensibly equivalent to:
6U8 CV5065
See also:
Valves for Bands III, IV & V - A New Phase-splitter - ECF80 and ECF82

Extras ▼



The ECF82 is a high slope triode pentode designed for television use as a frequency changer or mixer. It was also found to be effective as an audio phase splitter.

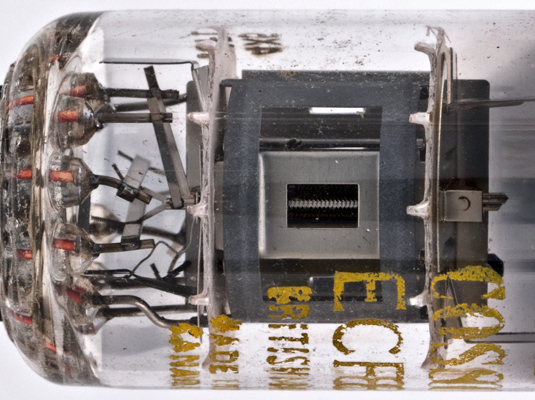

The anode opposite the grid support rods is open allowing a limited view inside. The bright structure is the beam forming plate. The ECF82 is a beam tetrode.

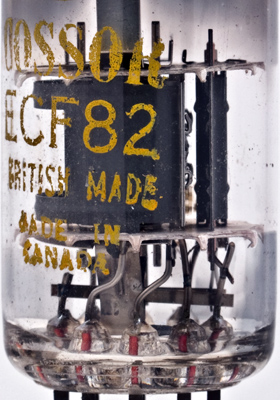

The pentode on the left is much larger than the triode on the right. The lettering states British Made and also Made in Canada.

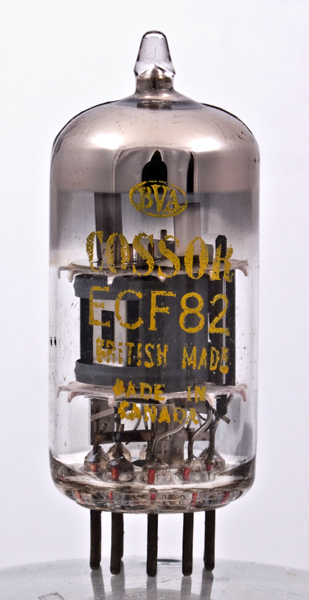

The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 47 mm tall.
References: Data-sheet & 1040 Type ECF82 was first introduced in 1953. See also 1953 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a
k,g3,s
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.45
250
110
-0.9
5.2
1.9
-
1.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December18, 2018.
