6U8

Sensibly equivalent to:
6TP1 CV5065 ECF82
See also:
Valves for Bands III, IV & V

Extras ▼

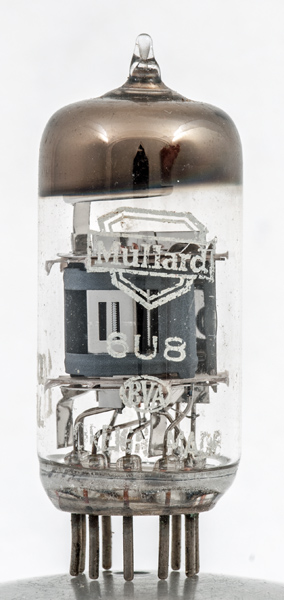

The 6U8 is a triode pentode from 1954. 6U8 is the American designation and ECF82 would be the Mullard type designation if the two were exactly identical. In ECF82 Mullard put both designations on the envelope indicating equivalence.
The design purpose was in VHF radio and television between 80 MHz to 220 MHz. Bands II and III. The valve would be used as a mixer with the triode as local oscillator.

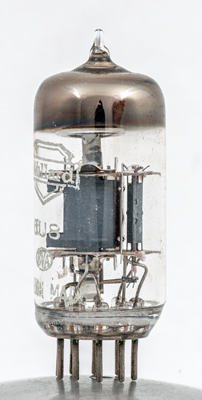

The triode on the right with the beam tetrode on the left. A bright screen separates the two sections.

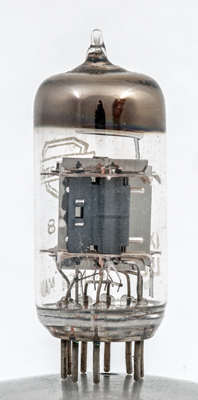

The triode anode is folded and stitched on one side. The grid has copper supports.

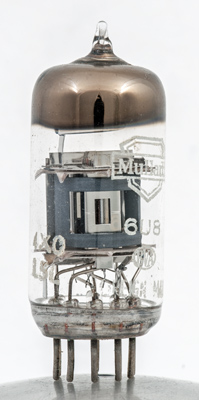

The bright beam plate with the screen grid beyond. The control grid is too close to the cathode to be seen.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 47 mm tall.
References: Data-sheet & 1040 Type 6U8 was first introduced in 1954.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a
k,g3,s
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.45
250
110
-0.9
5.2
1.9
-
1.9
PDF scanned from an original document held by the museum
Updated September 16, 2020.
shape:thin.glass.tube construction:all.glass type:triode.pentode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a(t) pin:2.g1 pin:3.g2 pin:4.h pin:5.h pin:6.a pin:7.k.g3.s pin:8.k(t) pin:9.g1(t)
