CV1076

Sensibly equivalent to:
DA41 NU40TZ SW40H TZ40 VT76
See also:
Small Power Valves

Extras ▼

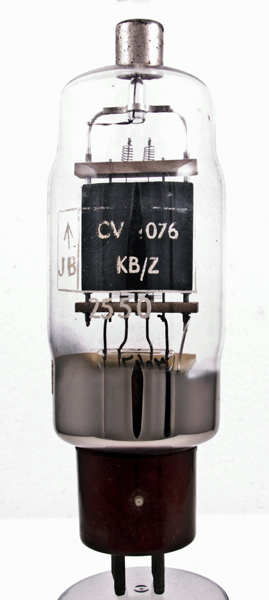

The CV1076 is the UK procurement code for the commercial DA41 but made for greater reliability at high power. It is a magnificent audio triode that was designed so that in class B a pair would deliver 175 Watts at 5% distortion. The anode dissipation is 40 Watts.

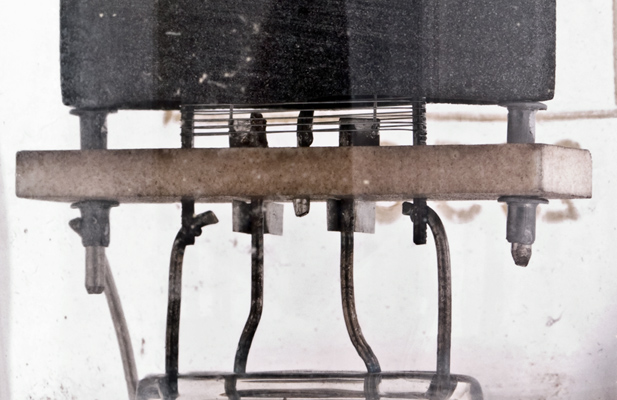

The construction is similar to DA41 in that a carbon anode is used and the electrodes are supported in ceramic sheets not mica. Our other CV1076 has a metal anode.
Our other DA41 has a ceramic base that would offer better insulation in high humidity.
The anode is a single piece carbon structure and is shaped and not a plain rectangle. The working faces are parallel to the grid. The filament is thoriated tungsten.
The balloon envelope is 51 mm in diameter and, excluding the UX4 base pins, is 149 mm tall.
References: Datasheet, 1040 & 1043. Type CV1076 was first introduced in 1939.



Pin Connections
UX4
1
2
3
4
tc
f
-
g1
f
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
Pout
7.5
3.1
1,000
0
140
175W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 23, 2015.
