6Q7G

Sensibly equivalent to:
CV587 DH63 NR68 POVT194
See also:
The 'Magic Three' Valves - CV587 short entry

Extras ▼



The 6Q7G is a double diode triode and was designed for receiver audio use.
The diodes would be for signal and AGC rectification and the triode would act as AGC amplifier or first audio amplifier.

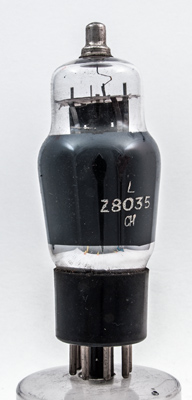

The reverse of the internally carbonised envelope carries a makers code.

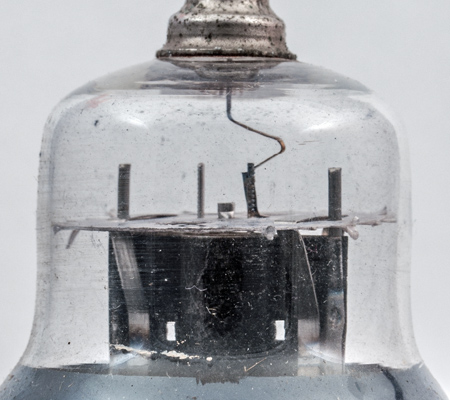

The triode control grid is connected to the top cap and the triode section sits at the top of the envelope the diodes will be below and are not visible.
The classic envelope is 38 mm in diameter and, excluding the IO base pins, is 97 mm tall.
References: Data-sheet, Data, 1040 & 1043. Type 6Q7G was first introduced in 1936. See also 1936 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
a(d2)
a(d1)
nc
h
k
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-3
1
58k
1.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 19, 2023.
