6F8G

Sensibly equivalent to:
CV1917

Extras ▼



The 6F8G is a medium-μ double triode. Primary use is as a Class A voltage amplifier with resistance/capacitance coupling. A decade later the ECC82 was providing almost identical characteristics in a miniature envelope.

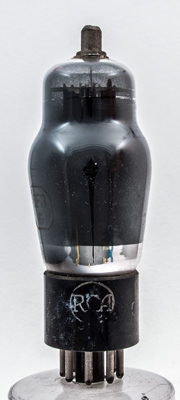

The RCA logo.

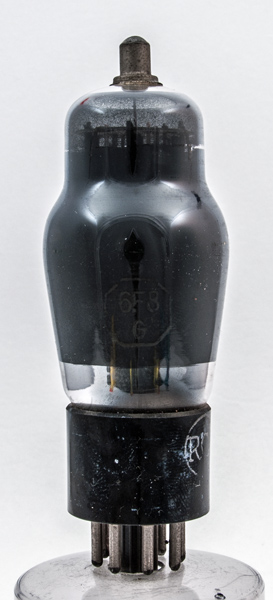

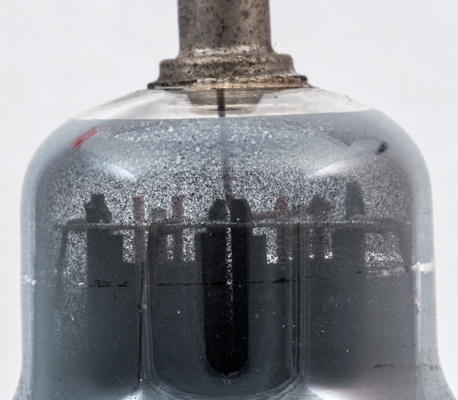

In this image the two triode sections are seen side by side an angle of about 30 degrees to the camera. It seems that the lower part of the envelope is largely empty
The thin glass tube envelope is  mm in diameter, and excluding the B9A base pins is  mm tall.
References: Datasheet, 1040 & 1043. Type 6F8G was first introduced in 1943.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
h
a(2)
k(2)
g1(1)
a(1)
h
k(1)
g1(2)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.6
250
-8.0
9.0
7,700
2.6
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
