CV575

Sensibly equivalent to:
5U4G U52

Extras ▼



The CV575 data-sheet indicates that the CV575 is identical to the 5U4G full wave rectifier. It is a general purpose rectifier.
The anodes have side flanges for cooling and fixing to the vertical supports.

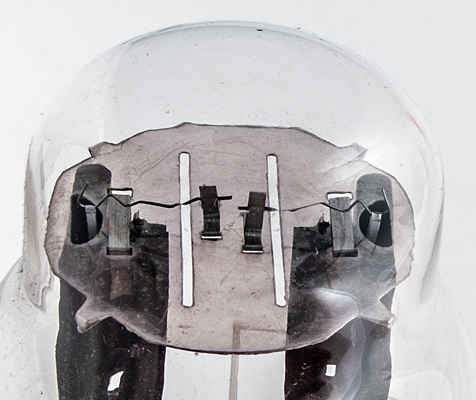

The top mica showing the oxide coated ribbon filaments and the tension springs.

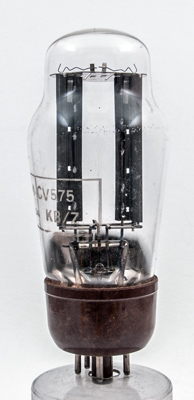

The classic envelope is 51 mm in diameter and, excluding the IO base pins, is 113 mm tall.
References: Datasheet, 1040 & 1043. Type CV575 was first introduced in 1938.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
f
-
a(2)
-
a(1)
-
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
3.0
450
225
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 11, 2015.
