CV287

Sensibly equivalent^¶ to:

150A2 150B3 GTR150M/S QS150/15 SM150 V987B

See also:

CV287 Priming Anode

Extras ▼

GEC G8LSD Valve Collection Other CV287 exhibits

The CV287 is a miniature voltage stabiliser and its direct commercial equivalent is the QS150/15.

The striking Voltage is 170 and for burning currents of 2 - 10 mA the regulation is 5 Volts. The electrode at pin 4 is the priming anode and it should draw no more than 500 μA. The data-sheet has more details.

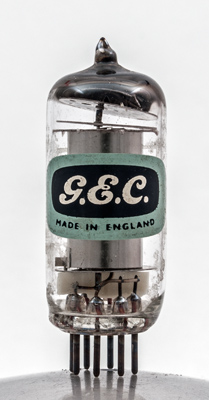

The GEC logo on the paper label. The GEC was the professional brand name of M-OV valves.

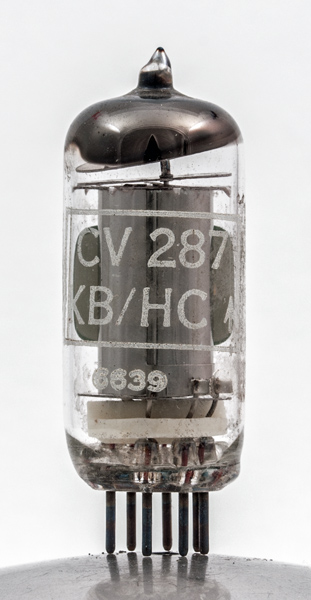

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 44 mm tall.

References: Data-sheet. Type CV287 was first introduced in 1954. See also 1954 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	k	k	k	pa	a	a	a

Absolute Maximum Operating Conditions^¶

Stabiliser	Va	mAa
	150	2-10

Thanks to Frank Philipse for supplying the above PDF datasheet.
