EL38

Sensibly equivalent to:
6CN6 CV450
See also:
Valves and their Habits - Ringing Choke EHT Advert, November 1948 - Mullard EF42, ECC34 & EL38 Advert - CV450 short entry

Extras ▼



The EL38 was designed as a television line output stage valve. In this Unilab educational aid the robustness of this power valve is a distinct advantage.
The box is 96 mm wide and 152 mm tall. Front to back is 57 mm.

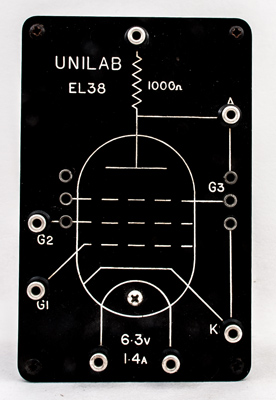

The front of the box.

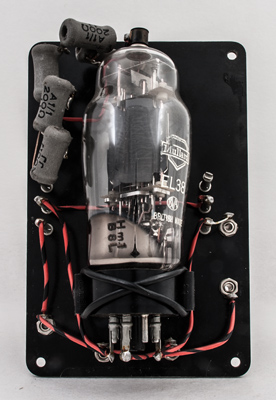

Inside is just the valve, wires and the five sections of the anode load resistor.

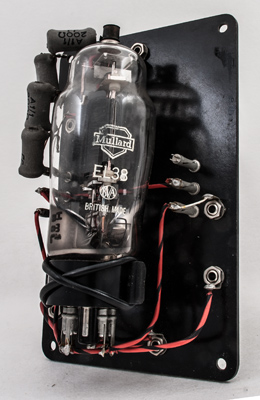

Side view.
The classic envelope is 41 mm in diameter and, excluding the IO base pins, is 115 mm tall.
References: Datasheet & 1040. Type EL38 was first introduced in 1946.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
g3
h
-
g2
g1
-
h
k
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
mAs
Pdiss
6.3
1.4
300
250
64
18
25W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 19, 2018.
shape:classic construction:pinch type:pentode age:1940.1950 base:io heater:6.3v pins:8 pin:1.g3 pin:2.h pin:3.- pin:4.g2 pin:5.g1 pin:6.- pin:7.h pin:8.k pin:tc.a
