LZ319

Sensibly equivalent to:
30C1 9A8 LZ329 PCF80
See also:
Valves and their Habits - Osram Valves for Band III TV

Extras ▼



The LZ319 is from the era of VHF television in the 1950s and early 1960s. The valve is a triode pentode designed to function as a mixer and local oscillator in the tuner. The B319 was the M-OV name for the corresponding double triode cascode amplifier valve found in VHF tuners at the time ITV television began on Band III in 1955 in the UK.

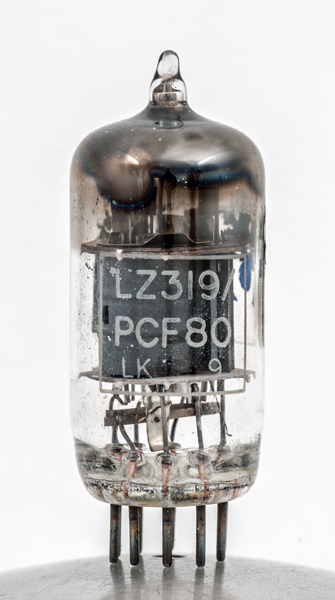

The pentode on the left with the smaller triode mounted at right angles to the pentode electron stream.
The remains of the Osram paper label.

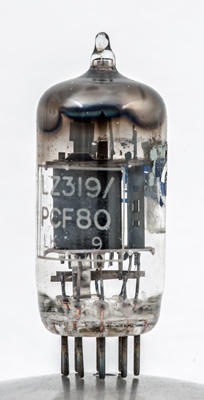

The thin glass tube envelope is 21 mm in diameter and 48 mm tall, excluding the B9A base pins.
References: Datasheet. Type LZ319 was first introduced in 1954.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a
k,s,g3
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
9
0.3
170
170
-5.5
10.0
2.0
0.87M
2.1



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
100
-2
14
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 24, 2018.
