VR136

Sensibly equivalent to:
CV1136 EF54 RL7
See also:
The Famous EF50 of WWII - Television RF Valve Development - CV1136 short entry

Extras ▼



The VR136 is the pre-CV UK service designation for the commercial EF54. The valve is a VHF high-slope pentode and has a sharp cut-off. The cathode is brought out to several pins to provide a low inductance path, part way to a ring connection as found in co-axial valves. The VR136 has aligned grids to reduce partition noise and was developed from the EF50 during WWII. The VR136 was capable of operation up to 200 MHz.

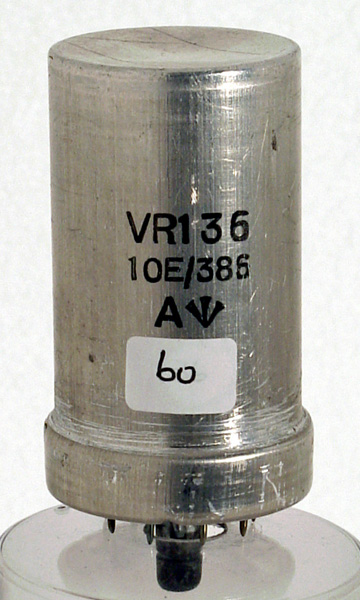

The all glass construction is covered with an aluminium screening can in the same fashion as the EF50 et al.
The B9G base was one of the first used for all glass construction.
The wide glass tube envelope is 32 mm in diameter and, excluding the B9G base pins, is 60 mm tall.
References: Datasheet & 1043.



Pin Connections
B9G
1
2
3
4
5
6
7
8
9
h
a
g2
k
k
g1
k
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
250
-1.7
10
1.45
0.5m
7.7
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 04, 2015.
