AC/TP

Sensibly equivalent to:
TP4
See also:
Murphy Radio - AC/TP Description - Some Important British Valves

Extras ▼

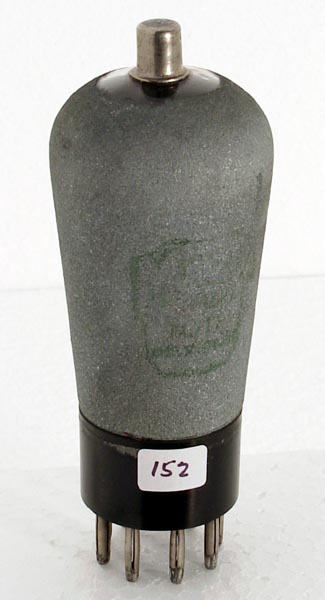

The AC/TP triode pentode frequency changer is of pinch construction but all internal structures are obscured by the external metalisation. The oscillator triode was designed to produce the 3 volts peak to peak injection required by the pentode section.
See also AC/TP.
The balloon envelope is 43 mm in diameter and, excluding the B9 base pins, is 106 mm tall.
References: Datasheet, 1040 & 1043. Type AC/TP was first introduced in 1934.



Pin Connections
B9
1
2
3
4
5
6
7
8
9
tc
g2
a
g3
h
h
k
a(t)
g1(t)
m
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
4.0
1.25
250
200
-5
6.5
2.5
0.9M
0.7



Absolute Maximum Operating Conditions
Triode
Va
mAa
150
1.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 05, 2015.
shape:balloon construction:pinch type:triode.pentode age:1930.1940 base:b9 heater:4.0v pins:9 pin:1.g2 pin:2.a pin:3.g3 pin:4.h pin:5.h pin:6.k pin:7.a(t) pin:8.g1(t) pin:9.m pin:tc.g1
