VT90

Sensibly equivalent to:
8011 CV1090 E1046
See also:
Micropup Valves - Radar Technique - Valve Developments

Extras ▼



This valve is an experimental version of the VT90 micropup M-OV developed for WWII 50 cm radar. The maximum frequency at full power for the VT90 was 300 MHz. The use of the re-entrant grid connection shortened the length and thus inductance of the grid circuit and made the higher frequency possible.

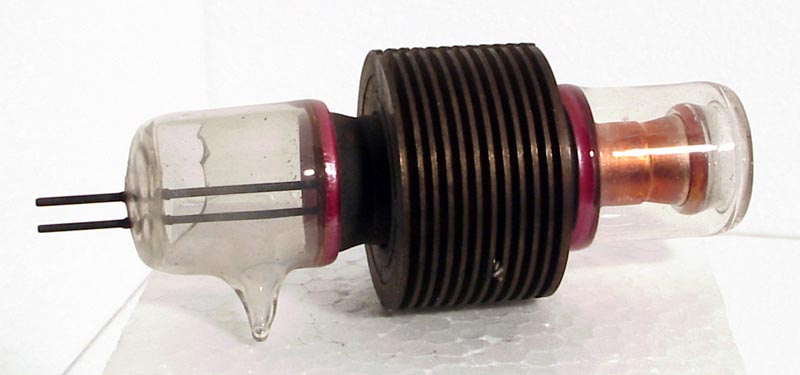

In the picture the filament connects at the left, the anode is the finned structure in the centre and the grid connects at the right. The construction is coaxial and this valve operated at about 600 MHz with a pulse power output of five kilowatts.
See VT90 for details of the production valve.
The co-axial envelope is 40 mm in diameter and, excluding the base pins, is 95 mm tall.
References: 1005. Type VT90 was first introduced in 1939. See also 1939 adverts.
