2C34

Sensibly equivalent to:
4074A CV18 DET19 RK34 VT-224

Extras ▼



The 2C34 transmitting double triode covers the VHF frequency range. The triode can be driven hard and this valve can accept a grid current of 15 mA.

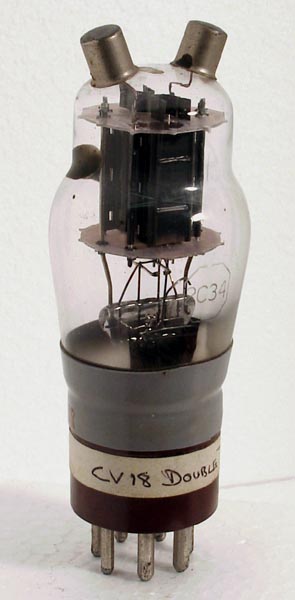

The interesting thing about this exhibit is the neat support sleeve shrunk round it. We have seen apparently identical sleeves on some other WWII valves of American origin. Presumably the sleeve was intended to 'repair' a valve whose base cap was becoming loose but by whom is unknown.
The classic envelope is 42 mm in diameter and, excluding the UX7 base pins, is 110 mm tall.
References: Datasheet Type 2C34 was first introduced in 1938.



Pin Connections
UX7
1
2
3
4
5
6
7
tc
tc
h
-
g1(1)
k
g1(2)
-
h
a(1)
a(2)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
Pdriv
Pdiss
Pout
freq
f.max
6.3
0.8
300
-50
80
2W
5W
15.9W
50MHz
250MHz.
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December05, 2012.
