76

Sensibly equivalent to:
276 A676 CV615 UY-76 UY76 VT-76

Extras ▼

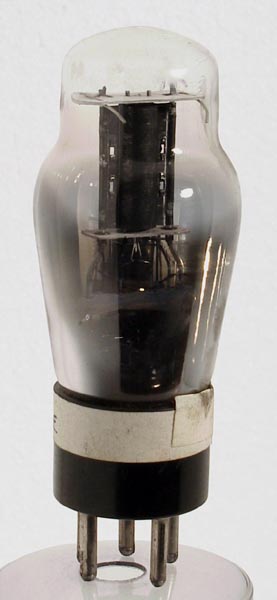

The 76 is general purpose amplifier triode, designed for use as oscillator, detector or amplifier. The characteristics are identical to Type 56 except that the 56 has a 2.5 Volt heater.
The classic envelope is 36 mm in diameter and, excluding the UX5 base pins, is 86 mm tall.
References: Data-sheet, 1040 & 3002. Type 76 was first introduced in 1940. See also 1940 adverts.



Pin Connections
UX5
1
2
3
4
5
h
a
g1
k
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-13.5
5.0
9,500
1.45
Thanks to Frank Philipse for supplying the above PDF datasheet.
