CV240

Sensibly equivalent to:
ACT24 E1496

Extras ▼

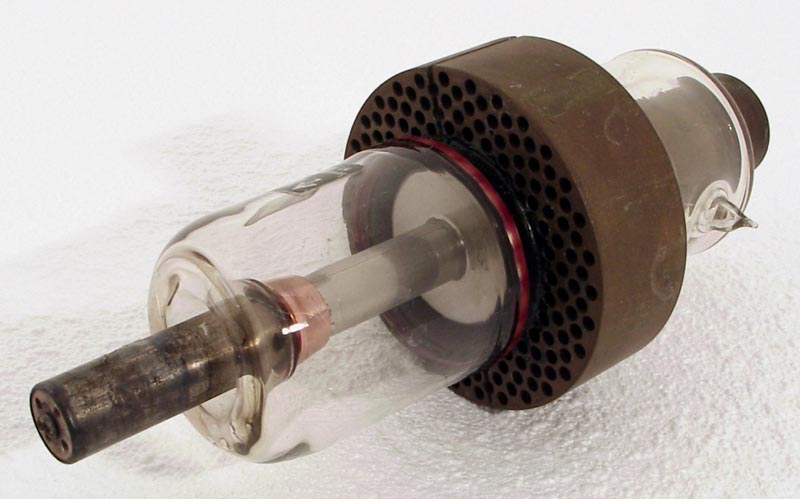

The CV240 pulse transmitting triode has a peak output power of 1000 Watts. The peak current is 67 Amps, but the mean current is 17.78 mA. The full power frequency of operation was 80-90 MHz and could be used at higher frequencies with reduced output.
The ACT24 micropup was an M-OV development during WWII and given a CV designation.
The cooling collar is 84 mm in diameter and 31 mm thick.
The envelope is 54 mm in diameter and, excluding the base pins, is 225 mm tall.
References: Datasheet & 1005.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
6.0
17.0
15,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
