CV1285

Sensibly equivalent to:
6N7G CV1956 ECC31 NR73
See also:
Quiescent Push-Pull

Extras ▼



The CV1285 was previously called the NR73 before the CV register was established in 1941. The prototype for the design was the ECC31.
Type CV1285 and its other commercial equivalent the 6N7, is by no means a general-purpose double triode since it has a powerful heater, a common cathode, and is designed to operate in push-pull Class B2 with zero grid bias or quiescent push-pull. The anode to anode load is given as 8,000 Ohm.
It is specifically an audio power valve capable of 10 W per pair.

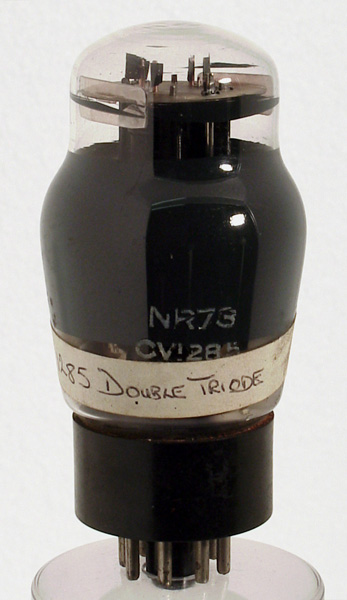

The classic envelope is 42 mm in diameter and, excluding the IO base pins is 82 mm tall.
References: Datasheet & 1043. Type CV1285 was first introduced in 1937.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
g1(2)
g1(1)
a(1)
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.8
300
0
35.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
