6X5G

Sensibly equivalent to:
CV572 EZ35 U147 U70 VT-126A
See also:
CV572 short entry

Extras ▼

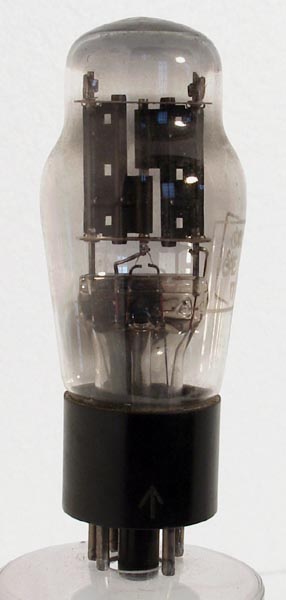

The 6X5G full wave rectifier is unusual in several respects. Firstly the valve uses a common cathode with anodes mounted vertically over the cathode tube. Secondly the valve is rated for pulse operation. In the latter case the maximum peak inverse volts is 1.25 kV.
In normal use the maximum reservoir capacitor is limited to 4 µF and the minimum series resistance has to be 150 Ohms.
See also 6X5 and 6X5GT.
The classic envelope is 36 mm in diameter and, excluding the IO base pins, is 88 mm tall.
References: Datasheet, 1040 & 1043. Type 6X5G was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
-
a(1)
-
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.6
325
70
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 06, 2015.
