EF37

Sensibly equivalent to:
OM5A
See also:
Evolution from EF36 & EF37 to EF37A - The World's First Computer - Stabilized Power Supplies - Mullard Scroggie Series 05 - EF37 Advert - Mullard EF37, ECC33 & EL37 Amplifier Advert, May 1949 - The Williamson Amplifier

Extras ▼



The EF37 high impedance screened pentode was designed for intermediate frequency amplifier use. The high anode AC resistance suggests the use of high Q tuned circuits.
The data sheets also give parameters for use as a triode.
The first computer, Colossus, built for code breaking during WWII made great use of these valves.
Although the original computers were destroyed after the war a rebuild has taken place at Bletchley Park. The red valves seen on the racks are the commercial EF37As, introduced after WWII and ultimately famous for application as low noise AF voltage amplifiers. The original Colossus was built by GPO engineers who must have chosen this valve in part for its low power heater.

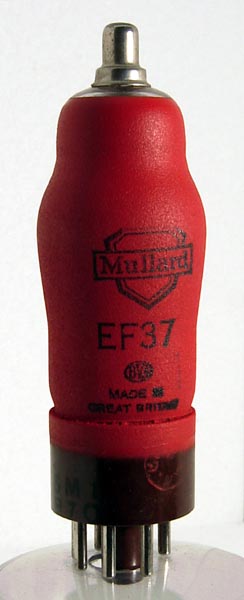

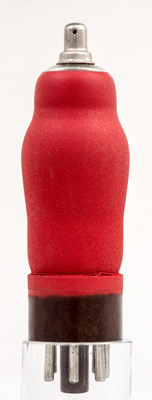

The classic envelope is 29 mm in diameter and, excluding the IO base pins, is 85 mm tall.
References: Data-sheet & 1043. Type EF37 was first introduced in 1942. See also 1942 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g3
nc
h
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
250
100
-2
3
0.8
2.5M
1.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December10, 2020.
