X148

Sensibly equivalent to:
7S7

Extras ▼

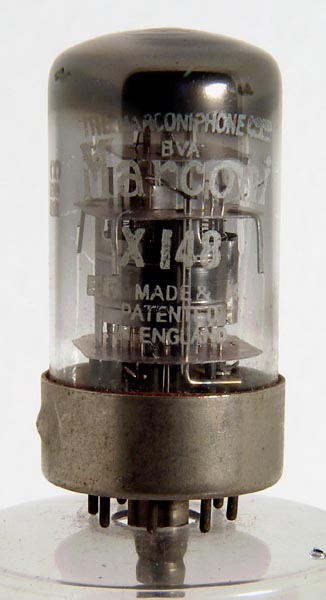

The X148 (directly = to 7S7) triode heptode was designed for frequency changer use in radio receivers. The 'x' in the type designation indicates a frequency changer.
The wide glass tube envelope is 28 mm in diameter and, excluding the B8B base pins, is 54 mm tall.
References: Datasheet, 3002 & 1040. Type X148 was first introduced in 1948.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
a(t)
g1(t),g3
g2,g4
g1
k
h



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-2
1.7
2.2
2.0M
2.0



Absolute Maximum Operating Conditions
Triode
Va
mAa
150
5.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 31, 2013.
