CV2520

Sensibly equivalent to:
5C22 CV6022 FX219 XH16-200

Extras ▼

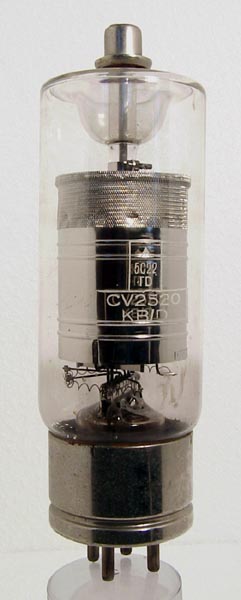

The CV2520 is a hydrogen thyratron with a short de-ionising time for high pulse rates. The prototype was the commercial 5C22. The base is the 'Super Jumbo' bayonet B4D.
These glass thyratrons are used as pulse generators and it was designed to work with a pulse transformer to generate higher voltages.
Thanks to Fred de Klepper for identifying this valve.
The wide glass tube envelope is 60 mm in diameter and, excluding the special base pins, is 189 mm tall.
Reference: Datasheet. Type CV2520 was first introduced in 1955.



Pin Connections
B4D
1
2
3
4
tc
g1
h,k
h
k
a



Absolute Maximum Operating Conditions
Thyratron
Vh
Ah
Va
6.3
11.6
16kV
Thanks to Frank Philipse for supplying the above PDF datasheet.
