VR66

Sensibly equivalent to:
CV1066 P61
See also:
CV1066 short entry

Extras ▼

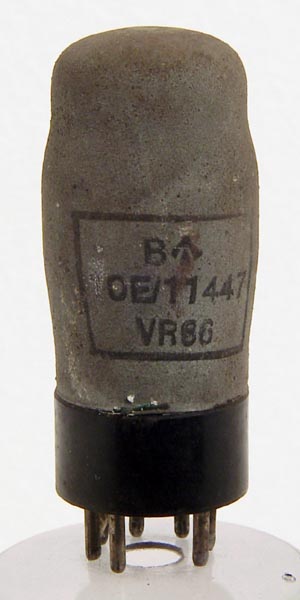

This service valve, comercial equivalent P61, is an oscillator triode designed for television working with as SP61 (VR65) as mixer.
The classic envelope is 32 mm in diameter and, excluding the MO base pins, is 68 mm tall.
References: Datasheet & 1043. Type VR66 was first introduced in 1941.



Pin Connections
MO
1
2
3
4
5
6
7
8
h
k
a
-
g1
m
-
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.6
250
-11.8
16
3,700
4.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
