6L7G

Sensibly equivalent to:
CV1950 VT-87A X64
See also:
Pentagrid Converters

Extras ▼



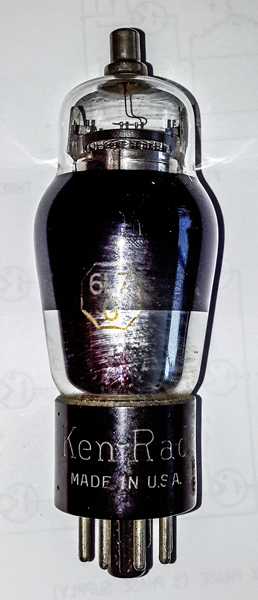

Here is the Ken-Rad implementation of the 6L7G. The 6L7G was designed to ensure maximum isolation between oscillator and signal, and to provide a mixer which is efficient.
The attached PDF applications note gives many uses other than as an oscillator/mixer. It can be used as an audio amplifier and/or as a gain controlled audio amplifier.
Thanks to M Asjes for sending the image.
The classic envelope is  mm in diameter and, excluding the IO base pins, is  mm tall.
References: Data-sheet, 1043 & 3002. Type 6L7G was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2,g4
g3
-
h
k
g1



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-6
3.3
8.3
1M
0.35
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 25, 2021.
