41MH

Sensibly equivalent^¶ to:

CV2503

See also:

1931 Advert - Cossor Mica Bridge Mounting Advert - Valves we have Tested

Extras ▼

Cossor The Curzon Collection Other 41MH exhibits

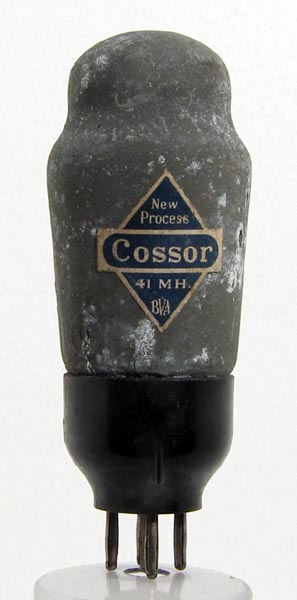

The 41MH is a detector triode and has external metallising. The New Process (1929) sticker suggests that this is an early version but the shouldered bulb points to mid 1930's.

See also 41MH for the original balloon envelope version.

The classic envelope is 46 mm in diameter and, excluding the B5 base pins, is 110 mm tall.

References: Data-sheet & ¹⁰⁴³. Type 41MH was first introduced in 1930. See also 1930 adverts.

Pin Connections

B5	1	2	3	4	5
	a	g1	h	h	k,

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm
	4.0	1.0	200	-1.5	3.2	18,000	4.0

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated February 05, 2022.
