30C18

Sensibly equivalent to:
7GV7 PCF805
See also:
Valves and their Habits

Extras ▼

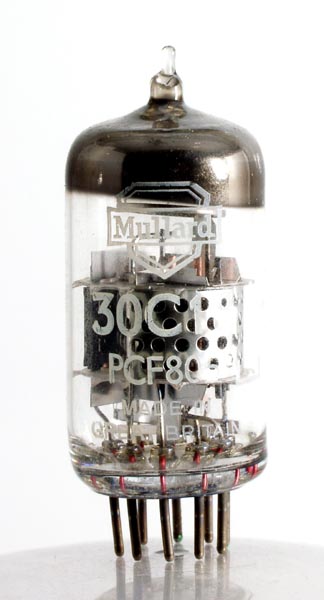

The 30C18 is a purpose designed oscillator and mixer for frequency changer use in VHF television receivers and directly equal to the PCF805. Although there are two separate electrode systems in the envelope the cathodes are joined together. To lower cathode lead inductance two pins are used for the cathode connections.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 45 mm tall.
References: Data-sheet & 1040. Type 30C18 was first introduced in 1962. See also 1962 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g2
a
h
h
k(t),k,g3,s
g1
k(t),k,g3,s
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
7.4
0.3
155
135
-3.0
7.8
2.4
0.4M
4.7



Absolute Maximum Operating Conditions
Triode
Va
mAa
77
7.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 05, 2020.
