6Z4

Sensibly equivalent to:
84 CV619 VT-84

Extras ▼

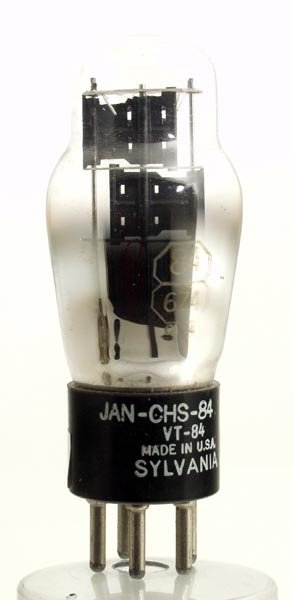

The 6Z4 is also marked as type 84 and VT-84. It is a low power indirectly heated full wave rectifier with a common cathode tube that runs vertically through both pressed anode cavities.
The classic envelope is 36 mm in diameter and, excluding the UX5 base pins, is 89 mm tall.
References: Datasheet, 1040 & 1043. Type 6Z4 was first introduced in 1937.



Pin Connections
UX5
1
2
3
4
5
h
a(2)
a(1)
k
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.5
350
60
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 22, 2013.
shape:classic construction:pinch type:rectifier.fw age:1930.1940 base:ux5 heater:6.3v pins:5 pin:1.h pin:2.a(2) pin:3.a(1) pin:4.k pin:5.h
