VT-84

Sensibly equivalent to:
6Z4 84

Extras ▼

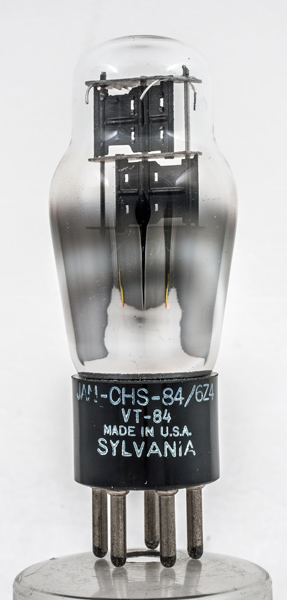

The VT-84 is also marked as type 84 and 6Z4. It is a low power indirectly heated full wave rectifier with a common cathode tube that runs vertically through both pressed anode cavities.
The stacked anodes mounded on the common cathode tube.

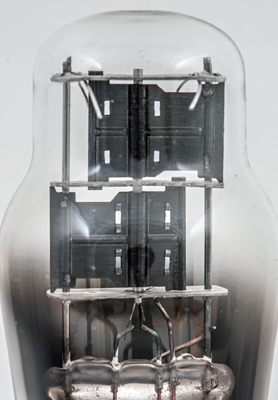

A closer view of the internal structure. The anodes are identical and the off-centre allows one to be rotated through 180 degrees relative to the other. Thus we can see both sides of the securing stitch.
The classic envelope is 38 mm in diameter and, excluding the UX5 base pins, is 89 mm tall.
References: Datasheet, 1040 & 1043. Type VT-84 was first introduced in 1937.



Pin Connections
UX5
1
2
3
4
5
h
a(2)
a(1)
k
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.5
350
60
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 16, 2018.
shape:classic construction:pinch type:rectifier.fw age:1930.1940 base:ux5 heater:6.3v pins:5 pin:1.h pin:2.a(2) pin:3.a(1) pin:4.k pin:5.h
