ECC35

Sensibly equivalent to:
6SL7GT CV569 VT-229

Extras ▼



The ECC35 is a medium impedance double triode with a high gain of 68. It was designed for use as a phase splitter and voltage amplifier in AF amplifiers.

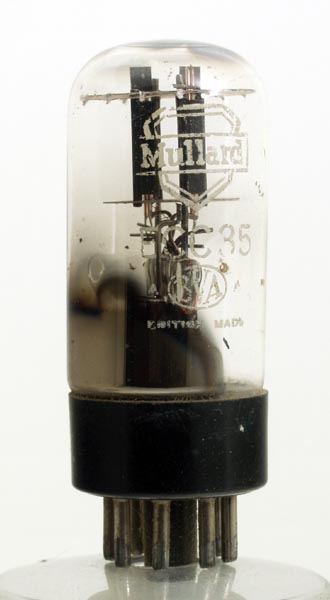

The anode structure of the twin triodes is seen in the picture above. The anodes are very thin in relation to their area.
The wide glass tube envelope is 28 mm in diameter, and excluding the IO base pins, is 66 mm tall.
References: Data-sheet, 1043, 3002 & 1040. Type ECC35 was first introduced in 1942. See also 1942 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(2)
a(2)
k(2)
g1(1)
a(1)
k(1)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.4
250
-2
2.3
34,000
2.0
68
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 04, 2013.
