6R7G

Sensibly equivalent to:
CV1962 DL63
See also:
The Magic Three

Extras ▼



The 6R7G double diode triode was designed for radio receiver use. In the classic superhet broadcast receiver such a valve would provide signal and AGC rectification, followed by the first audio amplification.
The 6SR7 has the same rating but is in a single ended metal envelope.

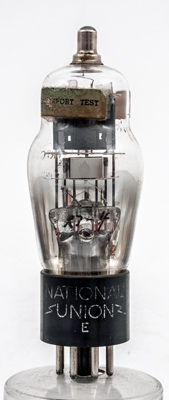

The National Union name on the base cap. The paper label around the top reads - Quality approved special report test.

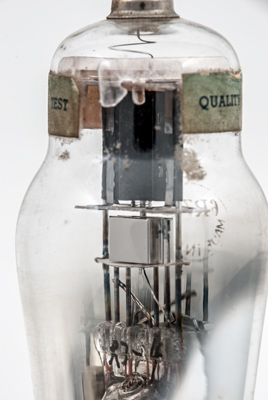

The construction above the pinch is typical for the double diode triode used in superhet receivers the triode mounted above the diodes on a common cathode.

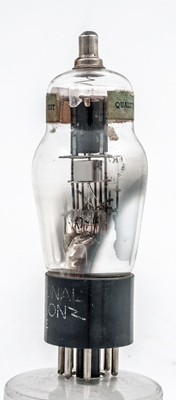

Above the central mica the base of the grid is visible. Below is the screen around the diode anodes. The latter are just vertical rods. Below the lower mica the insulated heater is coiled as a double helix that will reduce the mains field around the heater.

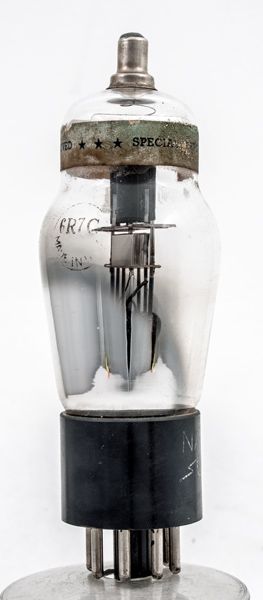

The classic envelope is 38 mm in diameter, and excluding the IO base pins, is 100 mm tall.
References: Datasheet, 1040 & 1043. Type 6R7G was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
a(d2)
a(d1)
-
h
k
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-9
9.5
8,500
1.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 07, 2018.
shape:classic construction:pinch type:double.diode.triode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a pin:4.a(d2) pin:5.a(d1) pin:6.- pin:7.h pin:8.k pin:tc.g1
