6080WC

Sensibly equivalent to:
6080
See also:
Series Pass Valves

Extras ▼

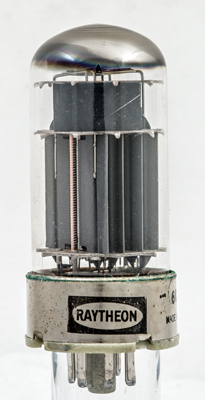

The 6080WC can be distinguished from the standard versions of this series pass valve by the large heat radiating fin attached to the control grid supports. It is also a special quality device as it has the vibration resistance conferred by the double micas.
The 6080 family had four variants 6080, 6080WA, 6080WB and 6080WC.

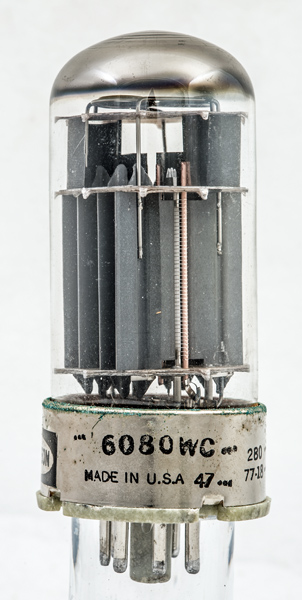

The control grid heat radiator sits between the normal top mica and an extra layer.
The grid wires can be seen to pass flat across the cathode and anode.

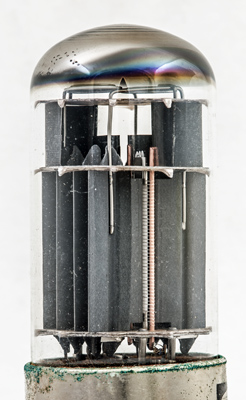

A closer view of the flat oxide coated cathode and grid winding.
The wide glass tube envelope is 38 mm in diameter and, excluding the base pins, is 87 mm tall. This is taller than many other manufacturers versions of this valve.
Reference: Data-sheet. Type 6080WC was first introduced in 1961. See also 1961 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(1)
a(1)
k(1)
g1(2)
a(2)
k(2)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
Pdiss
ra
gm
μ
6.3
2.5
135
125
13W
285
7.0
2-2.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
