1LH4

Sensibly equivalent to:
VT-177
See also:
Sylvania 1H5GT Box

Extras ▼



The 1H5GT is a dry battery diode triode for receiver use. The 1H5GT is the same valve but on an IO base. In a TRF receiver the diode would provide AM signal demodulation and the high μ triode would be the first audio voltage amplifier.

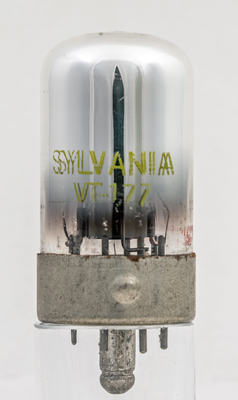

The Sylvania name and the American Government procurement code of VT-177.

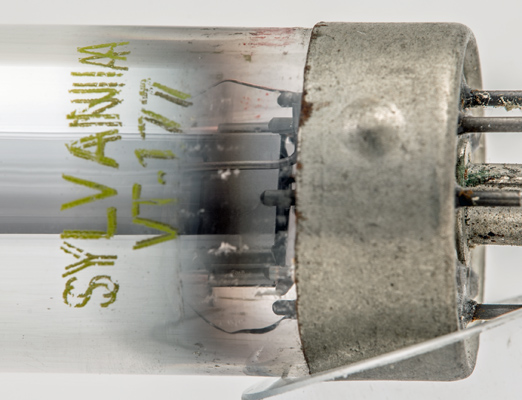

The base of the box anode. The gettering covers the rest of the envelope.

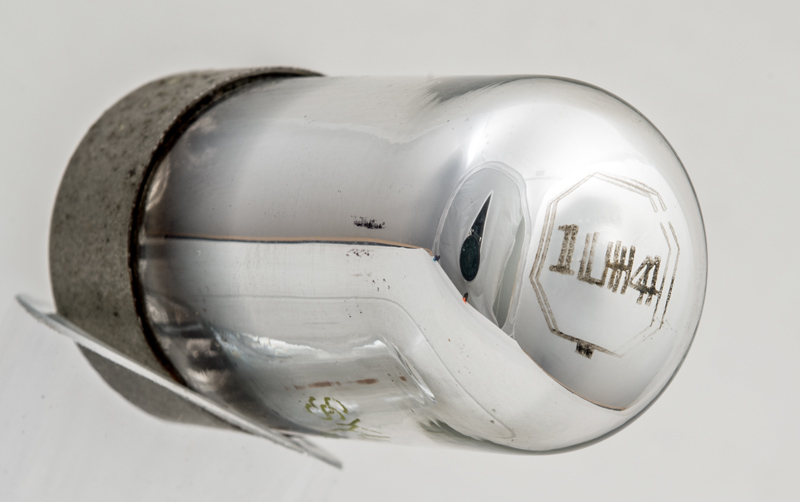

The wide glass tube envelope is 29 mm in diameter, and excluding the B8B base pins is 54 mm tall.
References: Data-sheet, Data, 1040 & 1043. Type 1LH4 was first introduced in 1940. See also 1940 adverts.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
nc
a(d)
nc
g1
nc
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
1.4
0.05
90
0
0.15
0.24M
0.275
65
Thanks to Frank Philipse for supplying the above PDF datasheet.
