VT-177

Sensibly equivalent to:
1LH4
See also:
Sylvania 1H5GT Box

Extras ▼



The VT-177 is a dry battery diode triode for receiver use. The 1H5GT is the same valve but on an IO base. In a TRF receiver the diode would provide AM signal demodulation and the high μ triode would be the first audio voltage amplifier.

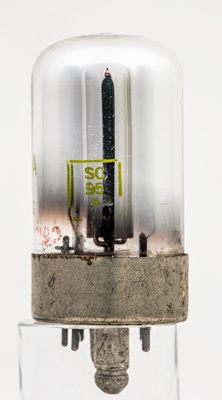

The code SC95A.

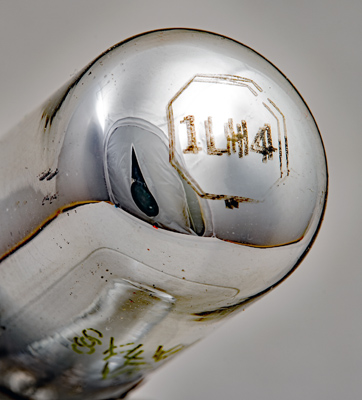

The dome has etched into it the commercial Type code of 1LH4.

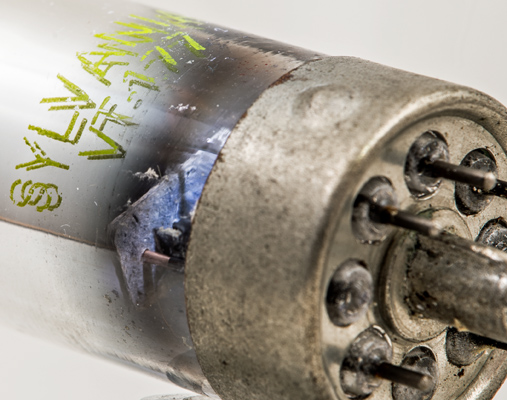

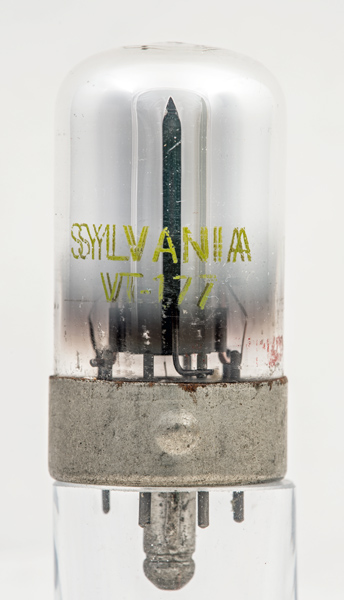

The Sylvania name and the USA Government procurement code of VT-177. Inside is obscured by the gettering but here the lower mica can be seen.
The wide glass tube envelope is 29 mm in diameter, and excluding the B8B base pins is 53 mm tall.
References: Data-sheet, 1040 & 1043. Type VT-177 was first introduced in 1940. See also 1940 adverts.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
nc
a(d)
nc
g1
nc
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
1.4
0.05
90
0
0.15
0.24M
0.275
65
Thanks to Frank Philipse for supplying the above PDF datasheet.
