6L6G

Sensibly equivalent to:
CV1286 CV1947 EL35 KT66 NR77 VT-115A
See also:
Beam Tetrodes and the 807 - The Williamson Amplifier - RCA 6L6G box with Mullard label

Extras ▼



The 6L6G it is a larger more powerful audio beam tetrode than the 6V6 receiver type. This was used for audio amplifiers and modulators for small Amplitude Modulated transmitters.

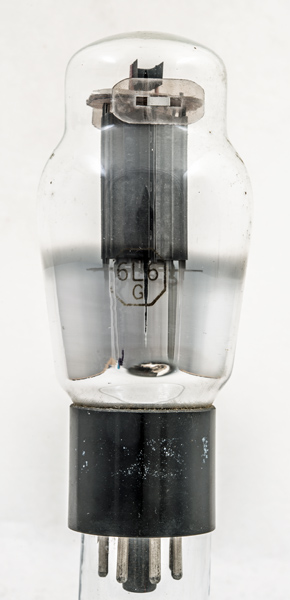

This was made in USA and the size and Type designation logo match the RCA 6L6G exhibit we hold.

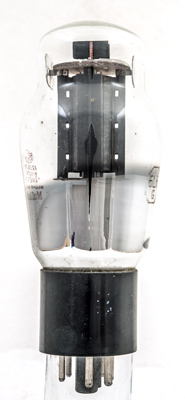

The Amerty branding indicates a valve made in USA for Mullard - probably during WWII.
The stitched anode and heat radiating fins on the control grid supports.
The classic envelope is 51 mm in diameter and, excluding the IO base pins, is 116 mm tall.
References: Data-sheet, 1040 & 1043. Type 6L6G was first introduced in 1936. See also 1936 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k,bp



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.9
350
250
-18
54
2.5
33K
5.2
11W
15%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 23, 2024.
