6L6G

Sensibly equivalent to:
CV1286 CV1947 EL35 KT66 NR77 VT-115A
See also:
Beam Tetrodes and the 807 - The Williamson Amplifier

Extras ▼

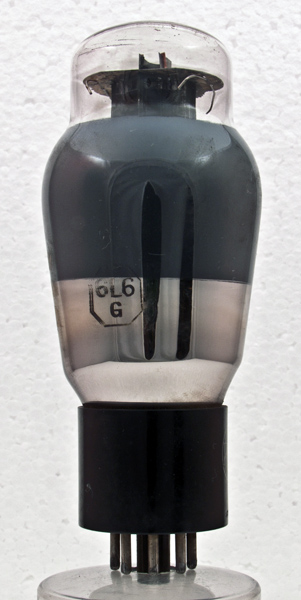

The 6L6G is is a larger more powerful audio beam tetrode than the 6V6 receiver type. This was used for audio amplifiers and modulators for small Amplitude Modulated transmitters.

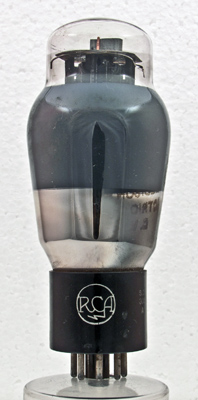

The RCA logo.

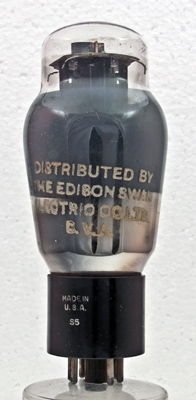

This exhibit is unusual in having added to the envelope the printed lettering showing that the valve was distributed by the Edison Swan Electric company.

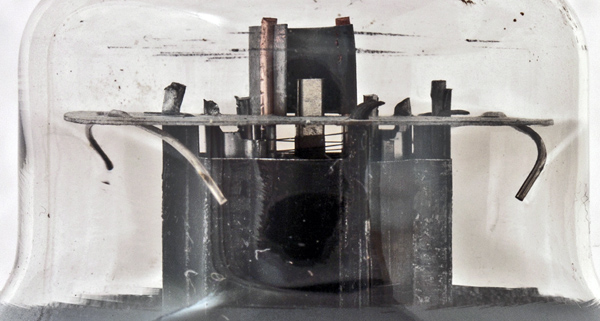

The top mica showing the heatsink fin attached to the copper control grid supports, the flat cathode and carbonised anode. The beam forming plates can be seen as the bright plates within the anode.
The classic envelope is 51 mm in diameter and, excluding the IO base pins, is 116 mm tall.
References: Datasheet, 1040 & 1043. Type 6L6G was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k,bp



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.9
350
250
-18
54
2.5
33K
5.2
11W
15%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 14, 2013.
