PC86

Sensibly equivalent^¶ to:

4CM4

See also:

Valves and their Habits - The PC97 Tutorial

Extras ▼

Pinnacle The Hampshire Collection Other PC86 exhibits

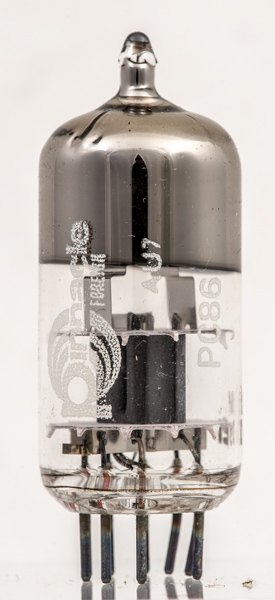

The PC86 is a purpose designed UHF frame-grid mixer/oscillator triode for Band 4 and 5 television reception.

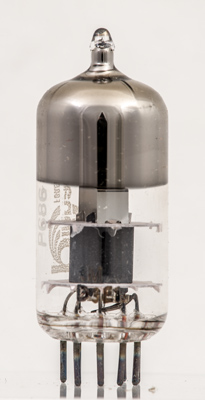

The anode looking along the grid axis.

The anode is mainly heat-sing. The part facing the cathode is at the end of the central depression.

The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins, is 48 mm long.

References: Data-sheet & ¹⁰⁴⁰. Type PC86 was first introduced in 1962. See also 1962 adverts.

Pin Connections

B9A	1	2	3	4	5	6	7	8	9
	a	g1	k	h	h	g1	k	g1	a

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm
	3.8	0.3	175	-1.5	12	4850	3.6

Thanks to Frank Philipse for supplying the above PDF datasheet.
