PCL84

Sensibly equivalent to:
15DQ8
See also:
Valves and their Habits

Extras ▼

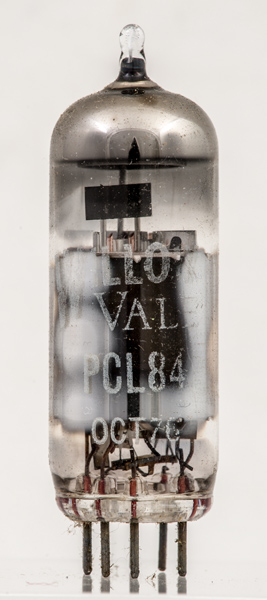

The PCL84 is a triode and output pentode mainly for use as a video output stage in domestic television receivers.

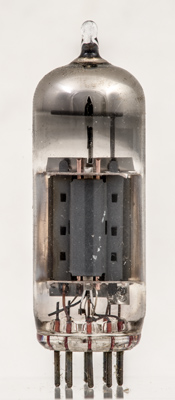

The triode on the left and on the right can be seen the internal coating on the glass to suppress evolved electrons.

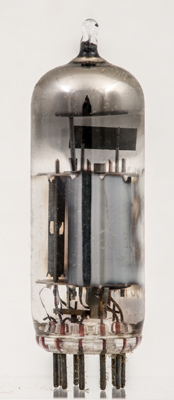

The triode grid is on copper supports and the winding looks to be copper wire but it is difficult to tell.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins it is 60 mm tall.
References: Data-sheet & 1040



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
a(t)
k(t)
h
h
a
k,g3,s
g1
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
15
0.3
220
220
-3.3
18
3.2
0.15M
9.5
4.0W



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
200
-1.7
3
16.2k
4
Thanks to Frank Philipse for supplying the above PDF datasheet.
