QV04-7

Sensibly equivalent to:
CV309 CV1510 VT510
See also:
Mullard TX Valves Advert - Olympia Show 1947 - Mullard QV04-7 Advert - Mullard QV04-7 Advert

Extras ▼

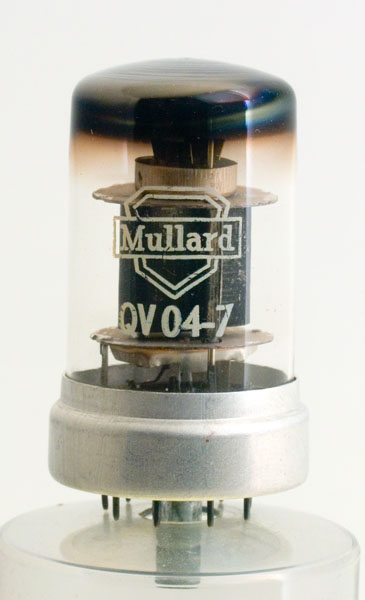

The QV04-7 is a single beam tetrode for transmitter use up to the low VHF region.
The design is all glass as were all of the B9G based valves. The valve would have been used for driver and frequency multiplier stages as well as for low power transmitters. It was designed for class C service.
The wide glass tube envelope is 31 mm in diameter and, excluding the B9G base pins, is 59 mm tall.
References: Data-sheet & 1040. Type QV04-7 was first introduced in 1946. See also 1946 adverts.



Pin Connections
B9G
1
2
3
4
5
6
7
8
9
h
a
g2
g2
bp,s
k
g1
bp,s
h



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pout
Pdiss
freq
f.max
6.3
0.6
300
250
-50
44
6
0.4
7.7
7.5
60M
150
Thanks to Frank Philipse for supplying the above PDF datasheet.
