Pen45

Sensibly equivalent to:
CV1407
See also:
Murphy Radio - Ediswan Advert - Mazda Pen45 & Pen383 Advert - Mazda TV Advert - Murphy Radio

Extras ▼



The Pen45 is an audio output valve. This valve, designed in 1938, was Mazda's post-war answer to the ubiquitous American type 6V6G used in consumer receivers. See Pen45 for fuller details.
The Pen45 was intended as a generously rated general-purpose output valve for domestic radios, radiograms, etc. It was a very good valve and a stalwart workhorse which seldom went wrong and therefore survives in fair numbers.
The Pen45 was used in the 1948 Murphy television receiver V114 in the output stages of both the sound and frame sections.

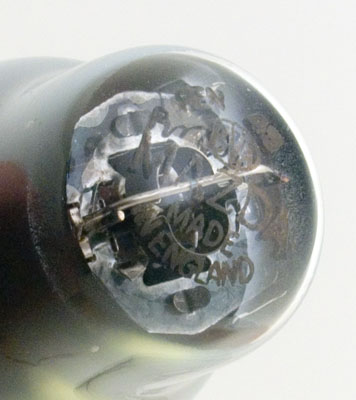

The top of the bulb has the identification printing, in standard Mazda style.

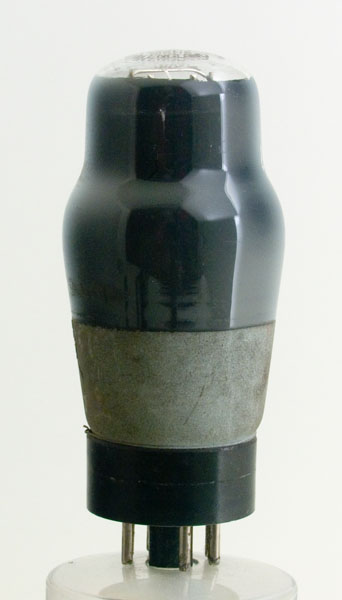

The classic envelope is partly metallised on the outside and the maximum diameter is 42 mm. Excluding the MO base pins the valve is 91 mm high.
References: Data-sheet, 1040 & 1043. Type Pen45 was first introduced in 1938. See also 1938 adverts.



Pin Connections
MO
1
2
3
4
5
6
7
8
h
k
a
g2
g1
m
nc
h



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
mAa
mAs
Pdiss
Pout
4.0
1.75
250
250
41.5
12.5
10W
11.5W D_5%
Thanks to Frank Philipse for supplying the above PDF datasheet.
