CV45

Sensibly equivalent to:
GTR120A S130P

Extras ▼



This voltage stabiliser has a maximum current output of 75 mA. This is above the normal range and was, therefore, designed to supply a stabilised voltage directly rather than act as a reference in a stabiliser power supply with a series pass valve.
The striking voltage was 135 Volts. Pin 4 is a priming anode to strike the discharge.

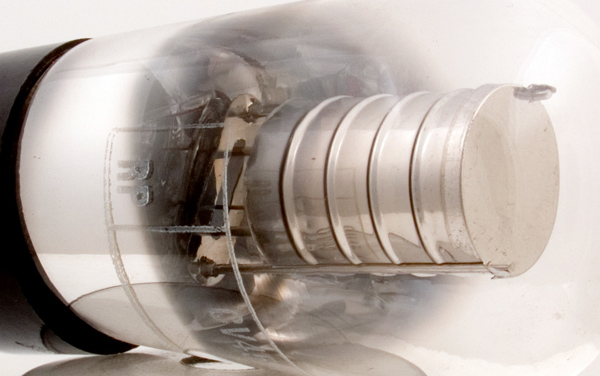

Looking down into the valve the pinch is on the left, then the bottom mica and then the sealed anode cylinder that has been ribbed for greater rigidity. Note that in this balloon envelope there is no locating top mica.
See also CV45 for a later tropicalised version with a classic envelope.

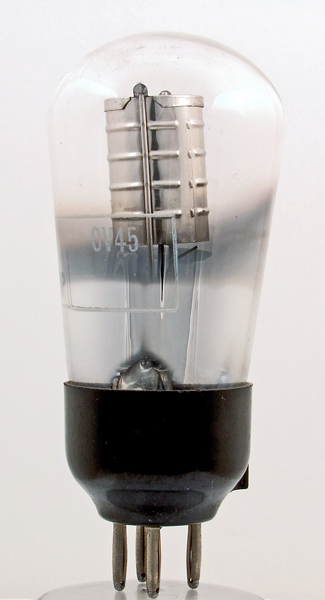

The balloon envelope is 50 mm in diameter, and excluding the B4 base pins is 102 mm tall.
References: Data-sheet.



Pin Connections
B4
1
2
3
4
a
k
nc
pa



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
120
75
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 08, 2022.
