Z719

Sensibly equivalent to:
6BW7 6BX6 6F28 8D6 CV1376 EF80 Z152
See also:
Television RF Valve Development - The Screen in an EF80 - Valves and their Habits - Valves for Bands III, IV & V - Pye B18T AC/DC Television Chassis - New Osram Valves Advert - Valves at the 1953 Show

Extras ▼



The Z719 is the M-OV version of the EF80 internally screened pentode. This RF valve design was the workhorse of VHF TV receivers and was introduced in mid 1950 to replace the EF91. It is a high slope RF pentode and not variable μ.
The circuit designer is given maximum flexibility by having all electrodes brought to external pins. Many pentodes have g3, the suppressor grid, internally connected to the cathode.

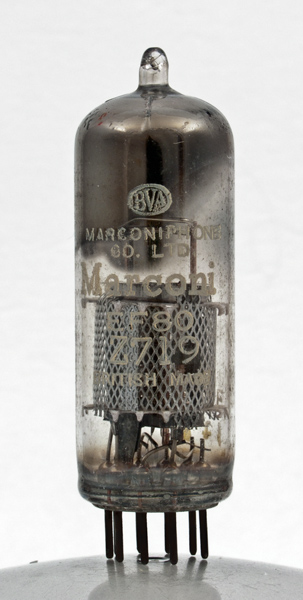

Looking through the screening mesh the anode can be seen as two small plates strapped together at the centre. The suppressor grid can be seen as an open helix on strong copper supports. The inner grids are shaped so that the wire passes flat across the cathode. The control and screen grids are not aligned and the control grid has a much finer pitch.
The thin glass tube envelope is 20 mm diameter and excluding the B9A base pins, is 58 mm tall.
References: Datasheet & 1040. Type Z719 was first introduced in 1953.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k
g1
k
h
h
s
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Va
Vs
Vg
mAa
mAs
ra
gm
170
170
-2
10
2.5
0.4M
7.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
