35Z4GT

Sensibly equivalent to:
CV2500 U76

Extras ▼



The 35Z4GT is a half wave rectifier and was designed for monochrome television use. This trectifier type was made by serveral manufacturers and this exhibit is from Brimar.
The 35Z4GT would feed a 40 µF reservoir capacitor through an effective series resistance of 100 Ohms.

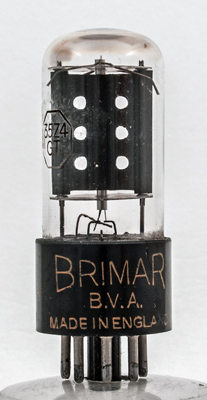

The Brimar name on the base. Note the etched identification on the glass that could indicate an RCA product.

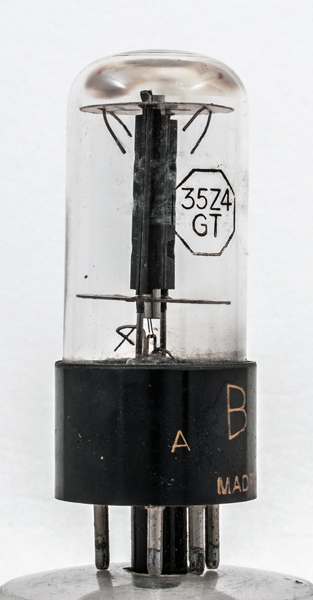

The anode is essentially an actibe central cylinder with side cooling fins.
The wide glass tube envelope is 29 mm in diameter and, excluding the IO base pins, is 71 mm tall.
References: Datasheet & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
ic
h
-
-
a
-
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
35
0.15
250
100
Thanks to Frank Philipse for supplying the above PDF datasheet.
