6U4GT

Sensibly equivalent to:
CV5287
See also:
Valves and their Habits

Extras ▼



The 6U4GT is a television efficiency diode from the early 1950s for use within the line timebase circuit. The diode allows energy from the collapsing magnetic field in the line coils to be fed back to the HT rail. The maximum peak inverse voltage for this stressed component is 3,850 Volts.

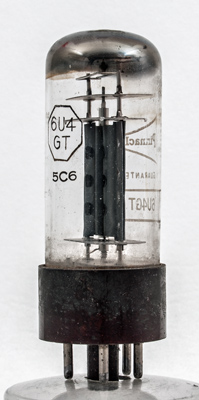

The etched Type designation in an octagon as found on RCA made valves.

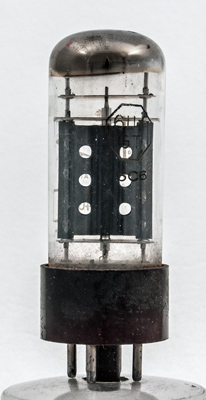

Typical half wave rectifier construction with central cathode tube and an anode that is dark to radiate heat and much wider than deep.

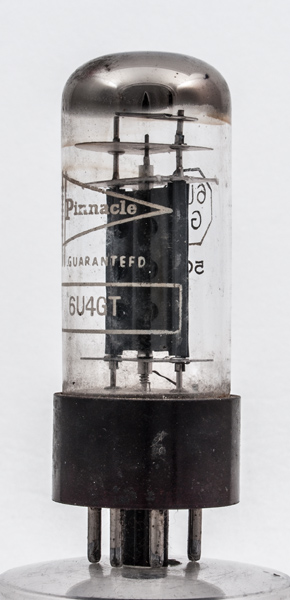

The wide glass envelope is 29 mm in diameter and, excluding the IO base pins, is 77 mm tall.
References: Data-sheet & 1040. Type 6U4GT was first introduced in 1952. See also 1952 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
nc
nc
k
nc
a
nc
h
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
1.2
660
138
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2022.
