6BZ7

Sensibly equivalent to:
6BQ7A 6BS8 6T27
See also:
Raytheon 6BZ7 Box

Extras ▼

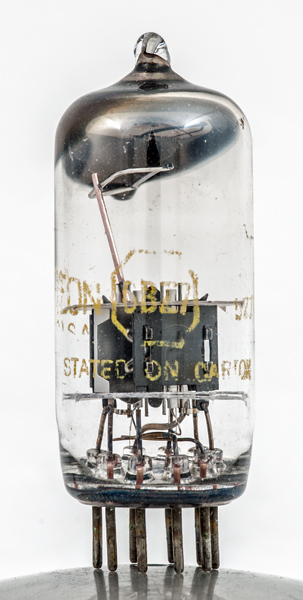

The 6BZ7 is a double amplifier triode designed for cascode operation is VHF television tuners. The standard European valve for this task was the PCC84. The 4BZ7 was electrically the same but the heater rating was 600 mA at 4.2 Volts for series heater chains.

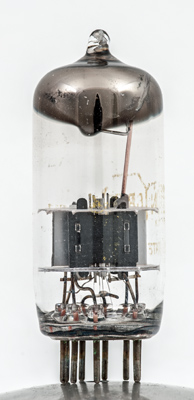

The small triode sections held between two mica discs. The total anode dissipation was two Watts.
The blackened anodes are wide for good heat dissipation. Running the triodes at 10 mA improves the noise figure.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 48 mm tall.
Reference: Datasheet. Type 6BZ7 was first introduced in 1956.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
s



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.4
250
-7
20
5,300
6.8
36
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 03, 2019.
shape:thin.glass.tube construction:all.glass type:double.triode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a(2) pin:2.g1(2) pin:3.k(2) pin:4.h pin:5.h pin:6.a(1) pin:7.g1(1) pin:8.k(1) pin:9.s
