PCC84

Sensibly equivalent to:
30L1 7AN7 B319 CV5191
See also:
Valves and their Habits - VHF Valves Advert, March 1954 - PCC84 Advert, May 1954 - Valves for Bands III, IV & V - PCC84/7AN7

Extras ▼

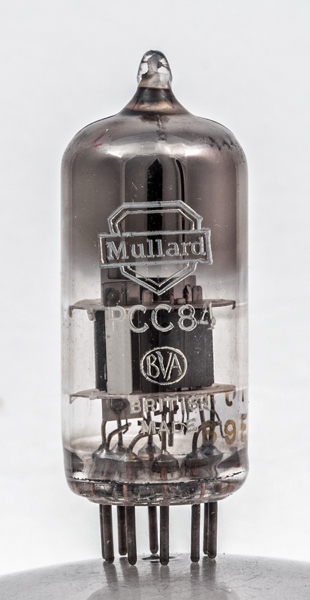

The PCC84 double triode shows how valves developed to meet the needs of the planned VHF television (Band III) transmission that opened in the UK in 1955. This exhibit was made by Mullard and is very similar to the PCC84 from Mazda. It was superseded by the PCC89.
The PCC84 and PCF80 both featured in set-top converters for the new ITV television Band III channels that commenced broadcasting in 1955. The transmissions were on around 170 MHz and much higher in frequency than the BBC Band I signals at around 50 MHz.
The PCC84 was specifically designed for cascode operation. The normal configuration was for triode one to be operated as a grounded cathode stage directly coupled to triode two. Triode two was connected as a grounded grid stage.
The triode has a smaller inter electrode capacitance than a pentode at VHF and could be made physically small. The photograph shows that within the envelope the electrodes are a small percentage of the total volume. The two triodes would be used for initial signal amplification at up to 220 MHz. The low anode voltage and relatively high current being features to ensure low noise operation. The anode dissipation was two Watts for one triode or 2.5 Watts for both triodes operating.

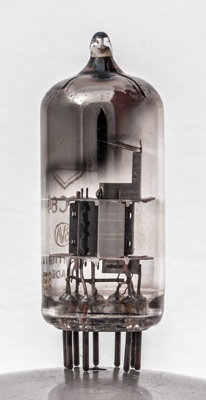

The triode sections are to left and right with the inter section screen showing at the centre and around the top of the left triode.

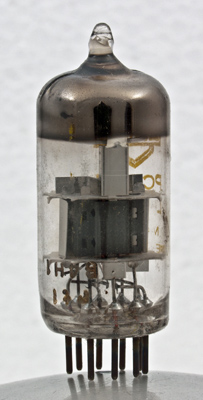

One triode face-on to the anode.
See also PCF80 for the corresponding oscillator and mixer.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins has a length of 48 mm.
References: Datasheet & 1040. Type PCC84 was first introduced in 1953.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k(2)
g1(2),s
a(2)
h
h
g1(1)
k1-in
k1-out
a(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
7.0
0.3
90
-1.5
12
4000
6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 07, 2016.
