6J6

Sensibly equivalent to:
CV858 ECC91

Extras ▼



The 6J6 is definitely 'all-American' and the ECC91 is a later copy. We fear much the same is true of many familiar 'British' valve types! - copies of American designs. Fortunately this is not a universal truth.
The B7G all-glass form of 'button base' construction is of American origin, dating from the early 1940s. Type 6J6 was one of the earliest B7G valves and probably could not have been made successfully using a conventional 'pinch' structure.
Once teething troubles had been overcome and B7G mass-production machinery was in place in support of the war effort, B7G types could be made more cheaply than conventional Octals and Loctals so, particularly after the War as military demand diminished and consumer demand rose, this machinery was put to good use making miniature versions of 'ordinary' consumer valve types irrespective of whether the pinchless button construction conferred any technical advantage. One snag was the availability of only 7 pins so some ingenuity was required when miniaturising conventional 8-pin valves. This soon lead to the development of the B9A button base which has remained a world standard ever since.
This miniature double triode was used for VHF signal amplification.

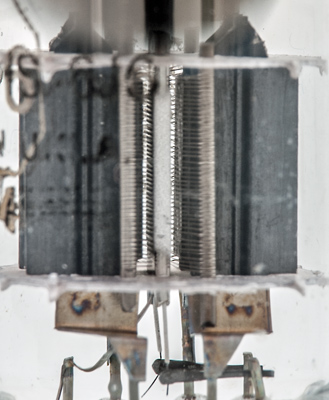

The construction has a common flattened tube cathode, with the control grids either side. The anodes are U channel sections either side of the central cathode.
The control grid can be seen to be shaped so as to pass flat across the face of the cathode.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
References: Datasheet & 1040. Type 6J6 was first introduced in 1956.



Pin Connections
B7G
1
2
3
4
5
6
7
a(2)
a(1)
h
h
g(1)
g(2)
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.45
100
-0.85
8.5
7100
5.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 04, 2019.
