VR150/30

Sensibly equivalent to:
0D3 150C3 CV216 CV685 G150/3D G180/2D GD150A/S GL150/30 KD25 QS150/40 VT-139 WT-294
See also:
Brimar VR75/30, VR105/30 & VR150/30 Advert

Extras ▼

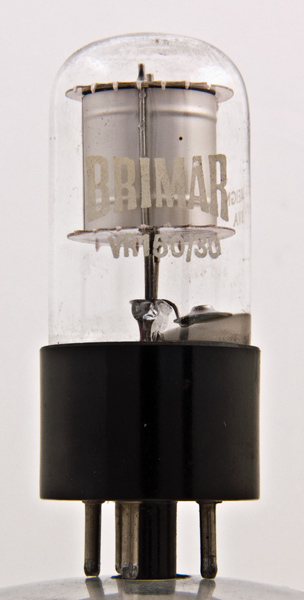

The VR150/30 (also VR150) is a gas filled discharge valve that exhibits a near constant voltage across the valve for currents within the range 5mA to 40mA. The regulation is 150 plus or minus 5.5 Volts.

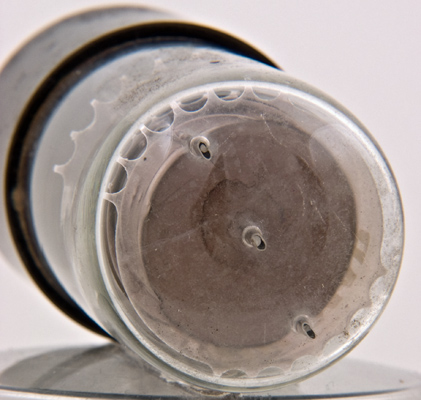

The side view reveals no additional information.

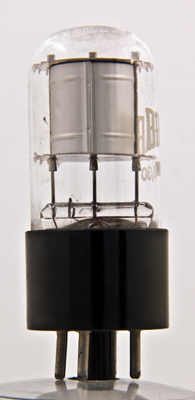

The construction is of a central cold cathode within a cylindrical anode. As usual the mica supports confer structural stability within the envelope.
The wide glass tube envelope is 30 mm in diameter and, excluding the IO base pins, is 69 mm tall.
References: Data-sheet & 1040. Type VR150/30 was first introduced in 1939. See also 1939 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
nc
k
7
nc
a
nc
3
nc



Absolute Maximum Operating Conditions
Stabiliser
Va
Vstab
mAa
180
150
5-40
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 02, 2021.
