VT52

Sensibly equivalent to:
CV1052 EL32 OM9 VT-52

Extras ▼



Most VT52's are made within a classic envelope as one would expect from a 1930's valve. This Canadian exhibit is in a tubular envelope and is probably a later production.
The VT52 was a particularly economical audio power valve (heater power = 1.26 W) and was used where very large numbers of valves were required (eg. in telephone exchanges), consuming power throughout the night when nothing much was happening but it was essential for the whole system to be instantly ready for an emergency.
Their power output capability was small by domestic radio standards but entirely adequate for a telephone line driver. The VT52 was used in very large numbers by the Post Office Telephones system but was also used to a smaller extent in Services equipment. We are uncertain whether it is numbered in the RAF or POVT series but we suspect the latter since it is a late 1930s valve.
The commercial equivalent is the Mullard EL32.
As a single ended output stage the power is 2.8W, suitable for audio output in a transceiver. When operated in push pull the pair can deliver 7 W at 1.5% distortion. This could be used for a transmitter modulator for a low power phone transmitter.

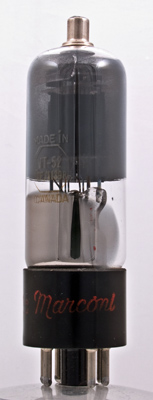

The Marconi brand and the made in Canada. Also the shadow of the anode is visible. The anode shape is he same as other examples. A cylinder with four heat radiating fins.

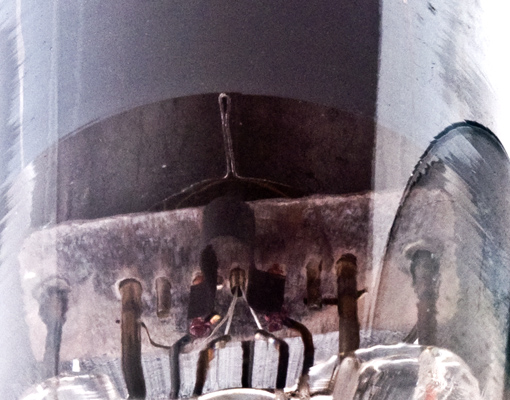

The pinch with connections to the electrodes. An anode fin can be seen at the top of the image.
The anode fin is made by folding the thin sheet. Note also the radiating fin at the bottom of the Copper control grid support rods.
The wide glass tube envelope is 29 mm in diameter and, excluding the IO base pins, is 94 mm tall.
References: Datasheet & 1043. Type VT52 was first introduced in 1940.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
h
a
g2
-
-
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.2
250
250
-18
32
5
70,000
2.8
2.8
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 04, 2013.
