QS150/15

Sensibly equivalent^¶ to:

150B3 CV287 GTR150M/S

See also:

CV287 Priming Anode

Extras ▼

Marconi The Communications & Electronics Museum Trust Other QS150/15 exhibits

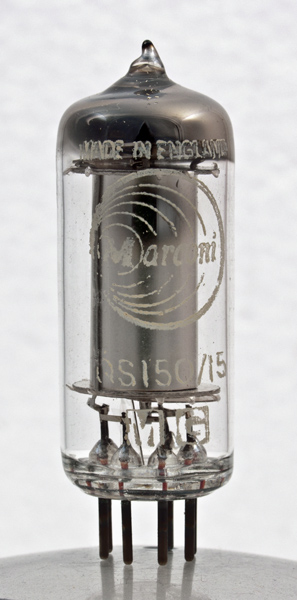

The QS150/15 is a miniature voltage stabiliser directly equivalent to the CV287.

The striking voltage is 170 and for burning currents of 2 - 10 mA the regulation is 5 Volts. The electrode at pin 4 is the priming anode and it should draw no more than 500 μA.

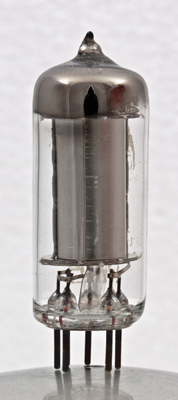

The bright cylindrical anode obscures the internal structure of cathode and priming anode..

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 46 mm tall.

References: Data-sheet. Type QS150/15 was first introduced in 1954. See also 1954 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	k	k	k	pa	a	a	a

Absolute Maximum Operating Conditions^¶

Stabiliser	Va	mAa
	150	2-10

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated December02, 2019.
