EF37A

Sensibly equivalent to:
5A/157D CV358 CV5080 OM5B
See also:
The First All Valve Computer

Extras ▼

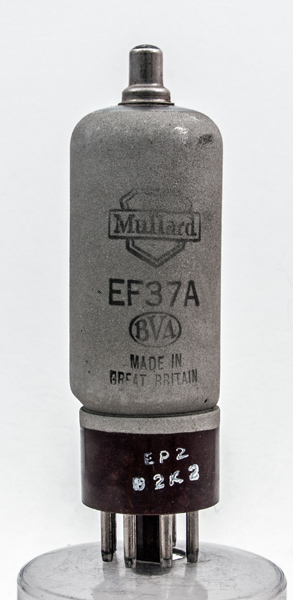

This exhibit is a Mullard EF37A in a glass tubular envelope covered in plain grey zinc paint external metalisation. This is the style of manufacture of the CV5080 for the UK government.
The low heater requirement of the EF37A at 0.2 Amps at 6.3 Volts made it attractive for use in the design of the Colossus code breaking processor.

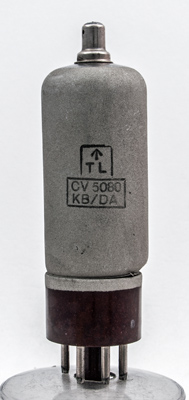

The reverse has the CV Type designation indicating complete equivalence. The CV5080 specification refers to use as an HF pentode with limited microphony and not as an audio pre amplifier valve.
The wide glass tube envelope is 29 mm in diameter and, excluding the IO base pins, is 86 mm tall.
Reference: Datasheet Type EF37A was first introduced in 1942.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g3
nc
h
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
300
125
-2
3
0.8
2.0M
1.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
