VR130

Sensibly equivalent to:
CV1130 HL23

Extras ▼

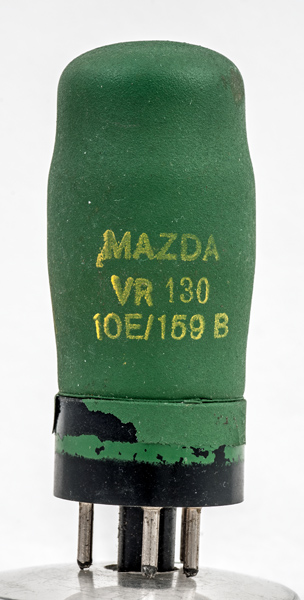

The VR130 is a directly heated battery triode based on the Mazda HL23. With the advent of the CV register in 1941 the VR130 was renamed the CV1130.

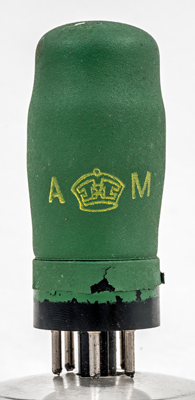

The Crown and letters A and M - the Air Ministry logo.
The classic envelope is 32 mm in diameter, and excluding the MO base pins is 71 mm tall.
Reference: Datasheet.



Pin Connections
MO
1
2
3
4
5
6
7
8
f
-
a
-
g1
m
-
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
2.0
0.05
150
-2.4
1.5
27,000
1.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 10, 2018.
shape:classic construction:pinch type:triode age:1930.1940 base:mo heater:2.0v pins:8 pin:1.f pin:2.- pin:3.a pin:4.- pin:5.g1 pin:6.m pin:7.- pin:8.f
